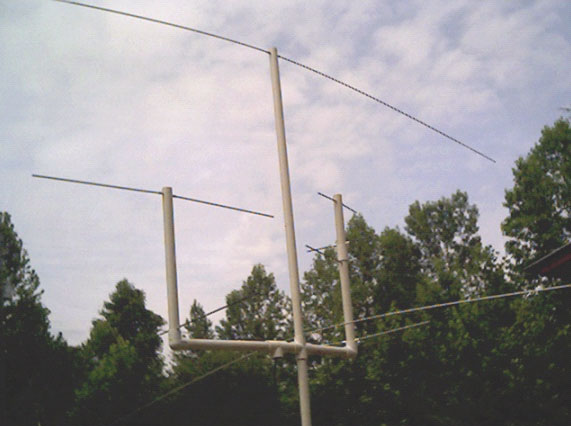

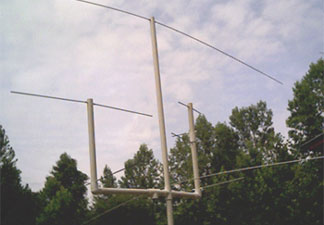

The "QHtenna" system offers simple, inexpensive, horizontal omni directional antennas for the Ham frequencies in the vhf/uhf range of 50 Mhz to 432 Mhz. Our turnstyle antenna boasts 3.2 dbi omni gain.

These antennas are designed to be "added on" to each other, as 1 antenna can be used alone, or all 5 models can be stacked or arranged together with simple 1 inch PVC pipe and elbows-tees-crosses. The antennas are made of 1 inch sched 40 with radiators of 3/16 inch aluminum rod.

Feedline suggestions are RG-8x coax with simple stakon brand terminals to attach the feedline to the antenna. The feedline may be inserted into the PVC pipe for looks and weather protection. The complete antenna system can even be painted to a color of your choice, even camouflage.

These antennas make a great rover antenna system, satellite system, or a permanent system for spotting or net control operation. Stacking for added gain and diversity reception gain excel in many ways over a yagi type antenna. All models are made for easy rod removal and storage. SWR is normally a flat 1:1, and power handling is 400 watts.

We also manufacture these turnstyles for special frequencies upon request, as for aviation and commercial uses where omni horizontal polarization is required. The ease of installation is the key, no expensive mounting kits, just plain old PVC and associated elbows available from any hardware store.

PRICING:

432 Mhz model	$19.95
222 Mhz model	$29.95
144 Mhz model	$29.95
50 Mhz model *	$39.95
72/222 Mhz model **	$39.95
122 Mhz model	$59.95

* For the 50 Mhz model, we recommend a set of replacement rods $15.

** The 72/222 Mhz model has 5.2 dbi gain on 222 mhz.

Add $10 for over 400 watts

Shipping and handling in the contiguous 48 is $7.75 each.

Payment via Check or Money Order. See below for Contact information.

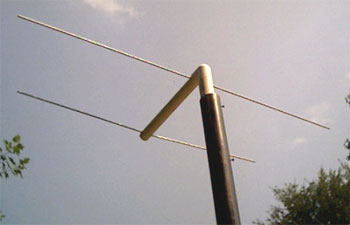

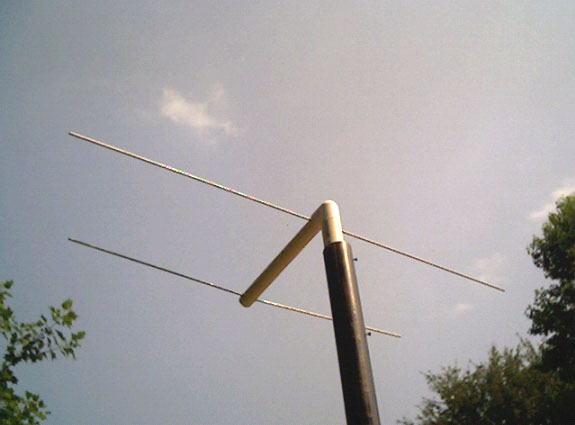

The "QHtenna" system offers simple, inexpensive 2 element yagi antennas for 144-146, 222, and 432-437 mhz.(other frequencies upon request).

These simple PVC antenna boast 4.2 dbi gain with a f/b of 15db with the advantage of no sidelobes. The add on director increases gain to 5.2 dbi).

These antennas can be used alone, stacks of all bands, or stacked for added gain. Stacking and mounting is left up to the users imagination since only simple PVC couplings,tees,or elbows are required, available from any local hardware store.

Feedline suggestions are RG-8x coax with simple stakon brand terminal to attach the feedline to the antenna. The feedline can be inserted into the PVC pipe for looks and weather protection.

The complete system can be painted a color of your choice, even camouflage. No tuning is required.

Great for moderate DX, and can be mounted vertically or horizontally. 4 stacked 2 element yagis make a super repeater antenna. Great for AO-40.

SWR is 1.3:1 or better with a power limit of 1000 watts each.

PRICING:

2 element 2 meter	$24.95
2 element 1 1/4 meter	$24.95
2 element 3/4 meter	$19.95

3 element add on kit $10

Shipping and handling in the contiguous 48 is $7.75 each.

Payment via Check or Money Order. See below for Contact information.
